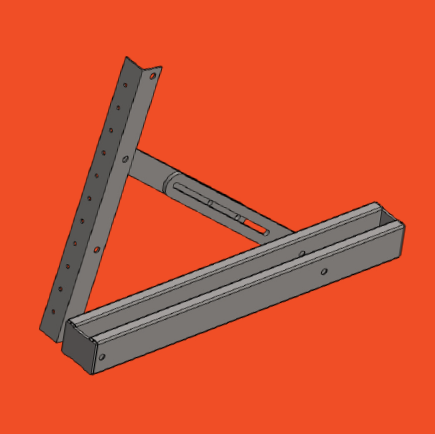

Featherweight
Formwork
Bracket



Our lightweight shotcrete bracket is the perfect solution for any construction project that requires a strong and durable shotcreet formwork system.

Weight Capacity: 7.5kg
Material: Steel
Length: 750mm
Height: 500mm
Static Front Load: -400kg

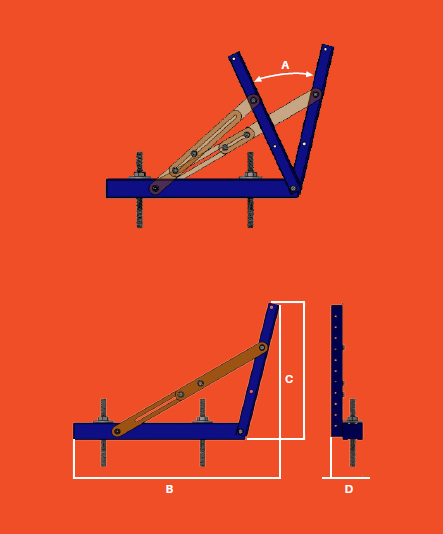

Large Range of Motion Possible*
A: 38°
B: 912.00mm
C: 605.00mm
D: 140.00mm

*Large Size Shown

Light Weight

  • Single Person Installation
  • Overhead Installation Possible
  • Total weight of only 7.5kg

Easy to Fix

  • Multiple fixings can be used
  • Easily adjustable for small changes – no need for complete reworks

Formwork Styles

  • Traditional Formwork
  • Form Board
  • Foam Backing

Multiple Sizes

  • Large
  • Medium
  • Small
